X-Cutter disc for very shallow soil tillage

Maximum shredding capacity and mixing intensity for the Catros compact disc harrow

Potrzebujemy Twojej zgody

Ta zawartość jest przegotowana przez zewnętrzny serwer. Przy aktywacji treści będą przetwarzane dane osobowe i wstawiane pliki Cookies.

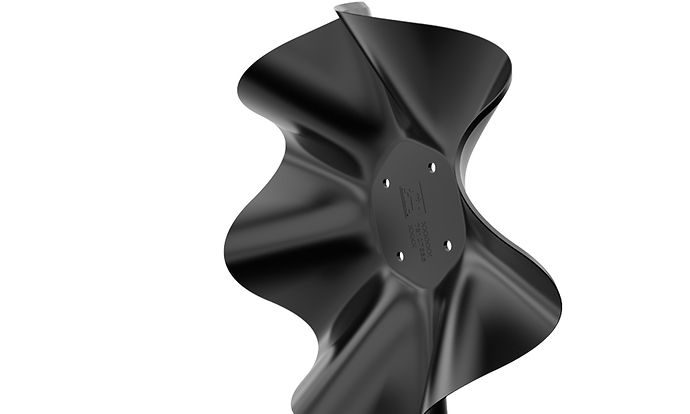

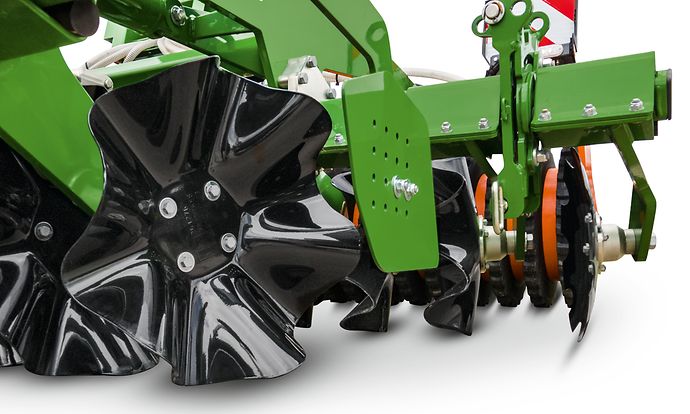

The X-Cutter disc moves the full surface at a shallow working depth thanks to its special wavey profile

AMAZONE has extended the range of tool options for the Catros compact disc harrow with the new X-Cutter disc. This special, wavey profile disc is used for very shallow soil tillage. The new X-Cutter disc has a diameter of 480 mm for a high peripheral speed and performs optimally at working depths from 2 to 8 cm. Thanks to the special wavey profile, the discs maintain that full-surface cultivation across the entire working width, even at these very shallow working depths. The special disc profile produces an intensive movement of the full-surface area and is sure to impress with its high mixing intensity close to the surface that generates faster rotting. This provides optimum conditions for the following crop. The X-Cutter disc also scores with its low pulling power requirement.

Optimum shallow chopping and mixing

Very shallow tillage plays an increasingly important role when it comes to carefully managing the water balance in the soil. Shallow tillage significantly reduces the loss through evaporation of valuable soil moisture, particularly in hot and dry summers. Much less soil is moved than with other discs, which need to operate at much greater depths to move the full soil surface.

The demand to maintain field hygiene is also increasing. After harvest, the soil should be worked only very shallowly so that volunteer grains, volunteer rape and weed seeds are not buried deeply but are kept in the surface area by the very shallow cultivation. This means that these seeds have excellent germination conditions and these unwanted plants are then mechanically removed in the subsequent tillage operation, in order to obtain a clean start for the following crop.

The X-Cutter disc also does a great job in tall catch crops thanks to its full-surface cut. Optimum shredding at a shallow working depth in conjunction with intense microbial activity in the top soil layer promotes faster rotting of the catch crop.

This new special profile disc is available as an option for new orders or for retrofitting to various models from the Catros+ and CatrosXL compact disc harrow range.

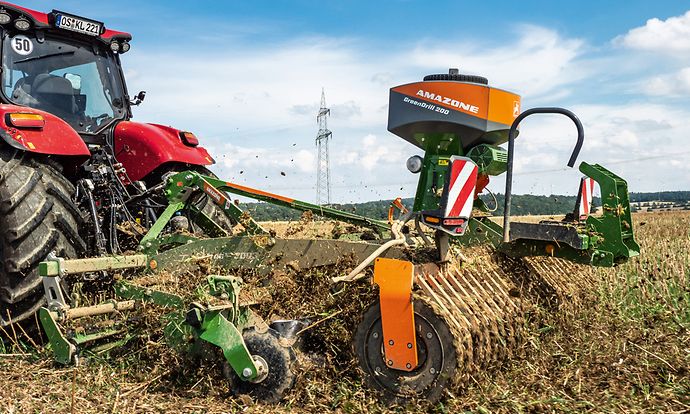

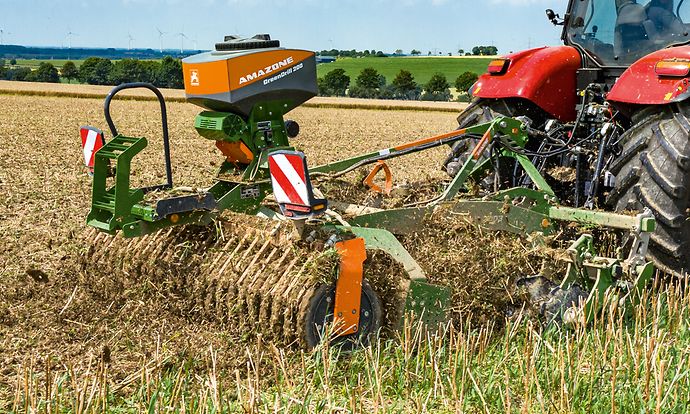

Equipped with the GreenDrill 200 for simultaneous application of catch crops

The X-Cutter disc ensures a particularly high proportion of fine soil. This provides the optimum germination conditions when used for the simultaneous broadcasting of catch crops.

Optimally combines with the knife roller

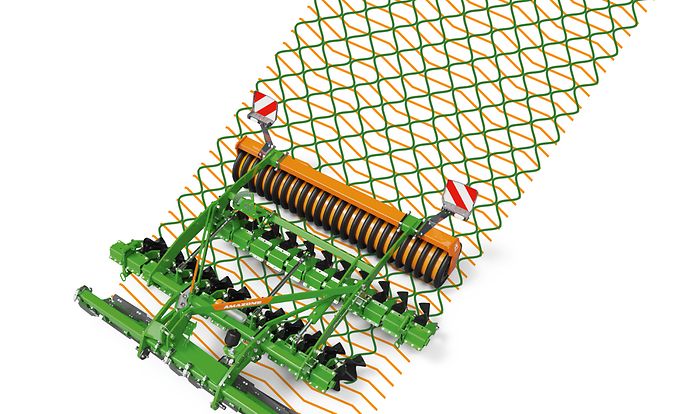

Ultra-shallow and intensive mixing of the soil and cutting the crop residue in combination with the knife roller

Furthermore, AMAZONE has another newcomer in the product range, the up-front knife roller. The combination of Catros with the X-Cutter disc and the knife roller enables a multi-dimensional cutting action to take place, thereby increasing the longitudinal and lateral shredding intensity in stubbles, straw and catch crops. The decomposition process is therefore yet further enhanced and the transmission of disease to the following crop reduced.
